Snow Flake Schema

Snow Flake Schema :

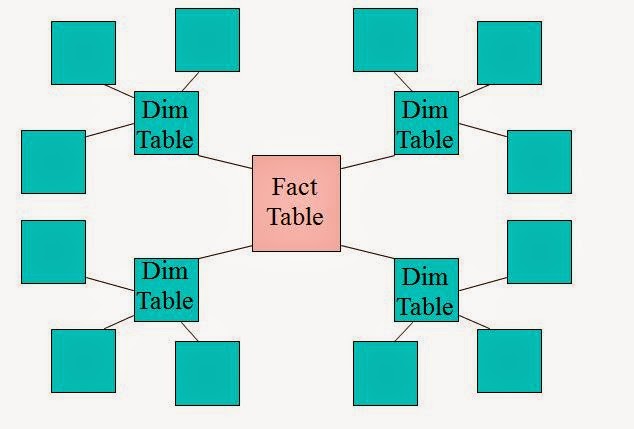

The snowflake schema is represented by centralized fact tables which are connected to multiple dimensions. In the snowflake schema, dimensions are normalized into multiple related tables, whereas the star schema's dimensions are denormalized with each dimension represented by a single table.

          Snowflake schemas are often better with more sophisticated query tools that isolate users from the raw table structures and for environments having numerous queries with complex criteria.

Some OLAP multidimensional database modeling tools that use dimensional data marts as data sources are optimized for snowflake schemas.

• A snowflake schema can sometimes reflect the way in which users think about data. Users may prefer to generate queries using a star schema in some cases, although this may or may not be reflected in the underlying organization of the database.

• A multidimensional view is sometimes added to an existing transactional database to aid reporting. In this case, the tables which describe the dimensions will already exist and will typically be normalized. A snowflake schema will therefore be easier to implement.

• If a dimension is very sparse (i.e. most of the possible values for the dimension have no data) and/or a dimension has a very long list of attributes which may be used in a query, the dimension table may occupy a significant proportion of the database and snowflaking may be appropriate.
